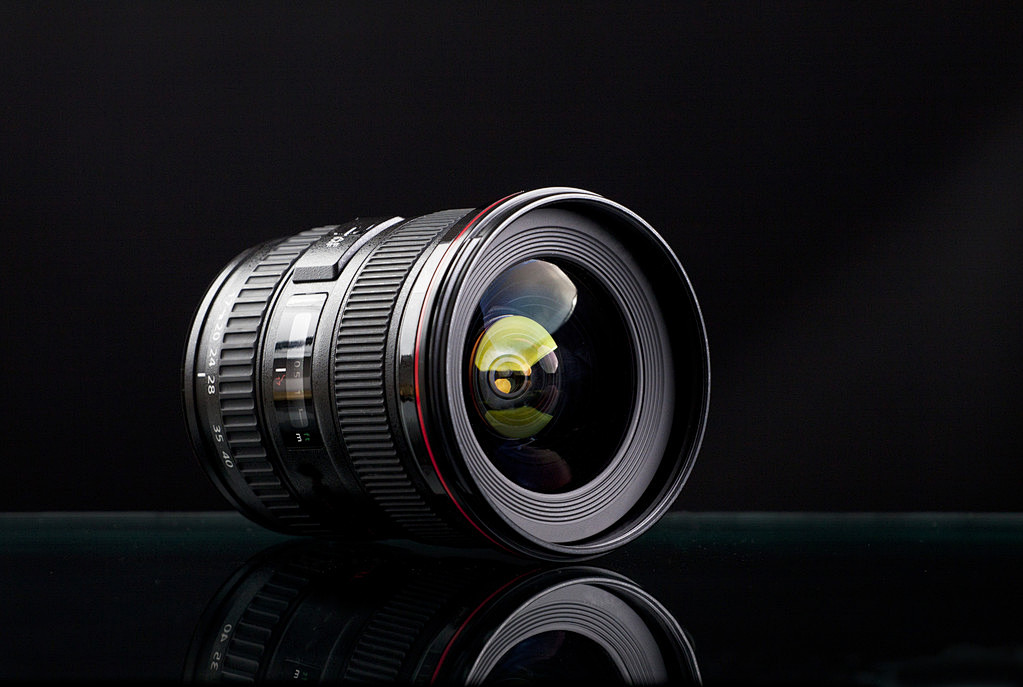

In the prototyping industry, camera lens components are notoriously difficult. Many shops attempt these parts on 3-axis or 4-axis machines, but the results are often disappointing—zoom mechanisms that stick and concentricity that misses the mark. This is because lens cam grooves and internal structures demand extreme spatial accuracy. If your current supplier is making excuses about precision or assembly issues, here is how we use 5-axis simultaneous machining to conquer these challenges.
Core Advantage: Absolute Mastery of Complex Spatial Geometries
Professional lens manufacturing demands exceptional mastery over spatial precision, particularly when handling non-linear cam grooves. These complex paths require extreme surface finish and strict spatial tolerances on the groove walls. Our 5-axis machining centers utilize real-time tool path compensation to follow the spiral trajectory perfectly, creating high-smoothness surfaces directly off the machine. This precision ensures dimensional accuracy for non-linear movement while resolving critical concentricity deviations across nested barrels, ensuring professional-grade smoothness without the need for manual lapping.
Structural Stability and Fit for Thin-Walled Components
Modern cinema lenses prioritize lightweight designs, resulting in aluminum walls that are incredibly thin and prone to stress deformation during machining. We have developed specialized 5-axis cutting parameters and custom vibration-dampening fixtures for these delicate components. By balancing cutting forces, we guarantee that even the thinnest barrels maintain perfect roundness. Furthermore, we precisely calculate compensation for anodic oxidation, ensuring zero-error assembly precision after surface treatment.
Our Factory Strength

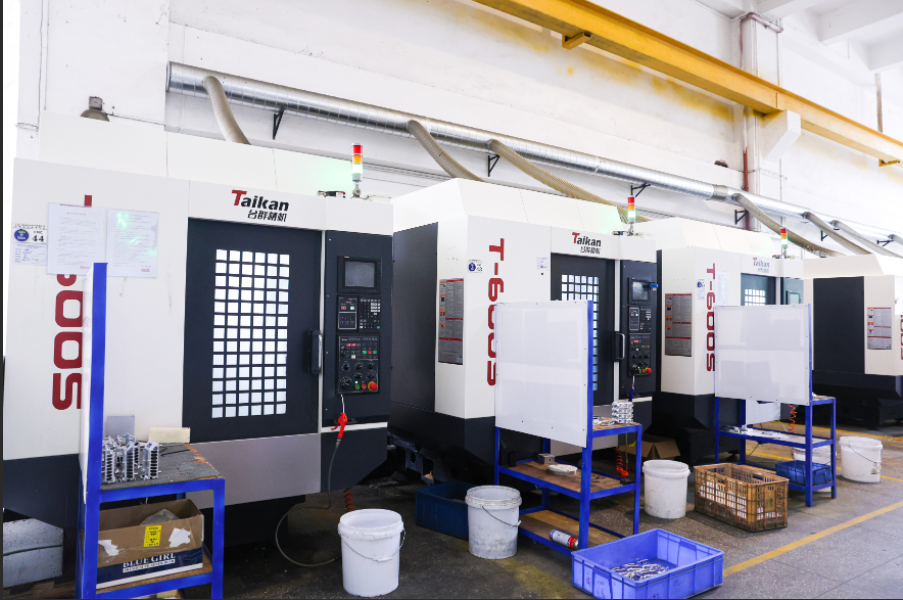

Our capability is backed by a fleet of high-precision 5-axis machining centers and advanced CMM inspection tools. With over a decade of specialization, we combine top-tier hardware with the practical experience needed to overcome unexpected engineering challenges. We prioritize your R&D schedule, offering lead times 30% faster than the industry average without compromising on quality. If you are looking for a partner to conquer precision components and deliver uncompromising results, please contact us.
